CWMS POOLS
Introduction

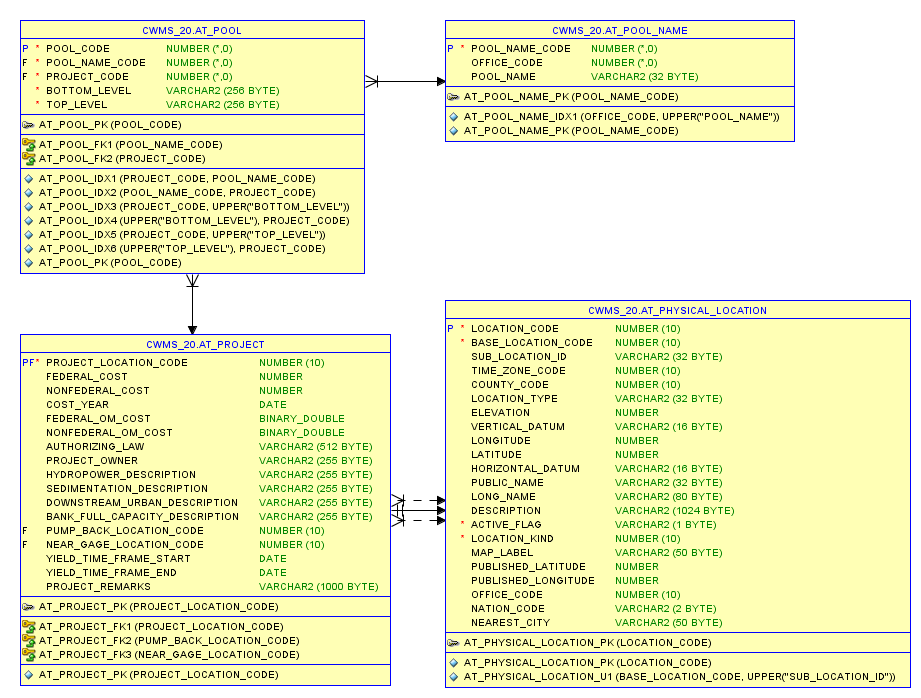

CWMS pools are database constructs that include:
A CWMS project location
A CWMS pool name
A CWMS location level for the lower limit of the pool
A CWMS location level for the upper limit of the pool
Project locations and pool names are static. That is, a project or pool may be renamed without breaking the relationship. However, the location levels for the lower and upper limits are dynamic; they are specified by name and resolved to actual location levels when used. This arrangement accommodates the fact that multiple location levels of the same name may form a time-related progression of definitions.
Pool Names
A list of standard pool names are provided in the database. Local pool names may also be created, renamed, or deleted in the database. However, standard pool names cannot be renamed or deleted. Pool names retain the character case used to store them, but local pool names that differ only in case from another local or standard pool name cannot be created. Local pool names created by one office do not affect the local pool names that may be created by another office in the same database.
Pool Definitions
A pool definition is the association of a pool name with a project location and bottom and top limit location levels. The bottom limit location level is exclusive, while the top limit location level is inclusive. That is, if pool A is limited by location levels A-Bottom and A-Top and Pool B is limited by A-Top and B-Top, then the elevation of exactly A-Top is in pool A and is not in pool B.
The associations that define pools may be explicit or implicit.
Explicit pool definitions store the association of project location, pool name, bottom limit location level, and top limit location level in a table in the database. The only restrictions are:
Each of the objects must already exist in the database
The bottom and top limit location levels must be of the form <project>.Elev.Inst.0.<specified_level>
The bottom and top limit location levels must be for the specified project
Implicit pool definitions are associations that are not stored in the database, but that exist because for some project <project> and some pool name <pool> that are stored in the database, there also exist the following location levels:
<project>.Elev.Inst.0.Top of <pool>
<project>.Elev.Inst.0.Bottom of <pool>
Implicit pool definitions can be used anywhere explicit ones can be used. The only difference is that deleting the bottom and/or top limit location levels of an implicit pool definition silently removes the pool definition. Deleting any location level used in an explicit pool definition will fail unless the procedure Cwms_Level.Delete_Location_Level_Ex2() is used with the P_Delete_Pools parameter set to ‘T’.
Any implicit pool definition may be made explicit by storing the pool definition with the Cwms_Pool.Store_Pool() procedure.
Elevation Orientation.
Although only elevation location levels – specifically Elev.Inst.0 – are used to define pools, the Cwms_Pool package includes routines that return storage limits, storage offsets, and percent full. Two mechanisms are provided to work with storages related to pools: storage location levels and ratings.
Parameters Controlling Storage Determination
Each procedure or function that uses storage has the following two parameters:
P_Always_Rate Varchar2 Default ‘T’
P_Rating_Spec Varchar2 Default null
The P_Always_Rate parameter should be set to ‘T’ or ‘F’; if omitted, it defaults to ‘T’. When set to ‘T’, storage values are always rated from elevation values. When set to ‘F’, pool storage limits are determined from storage location levels, if available. The storage limit location levels used are the same as the elevation limit location levels with ‘Elev.Inst.0’ replaced with ‘Stor.Inst.0’. If the expected storage limit location level doesn’t exist, then storage is rated from the elevation limit location level, even if P_Always_Rate is set to ‘F’.
The P_Rating_Spec parameter is used to specify a rating specification to use for rating elevation to storage, if specified or necessary. If not set, the default value is null. If rating elevation to storage is specified or necessary and P_Rating_Set is null, a standard rating specification will be used, if available. In this case, if zero or more than one standard rating specification is available, the routine will raise an exception.
Standard Elevation to Storage Rating Specification
If a procedure or function is required to rate elevation to storage and no rating specification is provided, the routine will look for a standard rating specification. Given the rating specification format of <location>.<parameters>.<template_version>.<specification_version>, a standard elevation to storage rating is one that:
<location> is the same as the name of the project (P_Project_Id parameter)
<parameters> is ‘Elev;Stor’
<template_version> is one of:
‘Linear’
‘Log’
‘Custom’
‘Standard’
< specification _version> is one of:
‘Step’
‘Distributed’
‘Custom’
‘Production’
Application Programming Interface
Views
Applications may select against the following views.
Cwms_V_Pool_Name
This view contains the following columns:
Office_Id Varchar2(16) The identifier of the office that owns the pool name
Office_Code Number(10) The numeric code of the office that owns the pool name
Pool_Name Varchar2(32) The name of the pool
Pool_Name_Code Number The numeric code of the pool
Cwms_V_Pool
This view contains the following columns:
Office_Id Varchar2(16) The identifier of the office that owns the pool name
Office_Code Number(10) The numeric code of the office that owns the pool name
Project_Id Varchar2(49) The identifier of the project that contains the pool
Project_Location_Code Number(10) The numeric code of the project
Pool_Name Varchar2(32) The name of the pool
Pool_Name_Code Number The numeric code of the pool
Definition_Type Char(8) ‘IMPLICIT’ or ‘EXPLICIT’
Bottom_Level Varchar2(357) Location level ID for bottom limit of pool
Top_Level Varchar2(357) Location level ID for top limit of pool
Managing Pool Names
Pool names may be created, renamed, deleted, and cataloged via PL/SQL procedures. A PL/SQL function also exists for cataloging information pool names. In addition, a view exists for viewing pool name information.
The cataloging routines include the same information as the Cwms_V_Pool_Name view minus the numeric code columns.
Item Type |
Name |
Purpose |
|---|---|---|
Pro cedure |
Cwms_ Pool.Store_Pool_Name |
Stores (creates or updates) a pool name |
Pro cedure |
C wms_Pool.Rename_Pool |
Renames a pool |
Pro cedure |
Cwms_P ool.Delete_Pool_Name |
Deletes a pool name |
Pro cedure |
Cwms _Pool.Cat_Pool_Names |
Catalogs pool names |
Fu nction |
Cwms_P ool.Cat_Pool_Names_F |
Catalogs pool names |
View |
Cwms_V_Pool_Name |
Displays pool names |
Managing Pool Definitions
Explicit pool definitions may be created, retrieved, updated, deleted, and cataloged. PL/SQL procedures exist for all of these uses. PL/SQL functions also exist for retrieving and cataloging information.
The cataloging routines include the same information as the Cwms_V_Pool view minus the numeric code columns and the Definition_Type column.
Item Type |
Name |
Purpose |
|---|---|---|
Pro cedure |
Cw ms_Pool.Store_Pool |
Stores (creates or updates) explicit pool information |
Pro cedure |
Cwms_ Pool.Retrieve_Pool |
Retrieves bottom and top limit location level names |
Fu nction |
Cwms_Po ol.Retrieve_Pool_F |
Retrieves bottom and top limit location level names |
Pro cedure |
Cwm s_Pool.Delete_Pool |
Deletes explicit pool information for a project |
Pro cedure |
C wms_Pool.Cat_Pools |
Catalogs pool definitions in the database |
Fu nction |
Cwm s_Pool.Cat_Pools_F |
Catalogs pool definitions in the database |
View |
Cwms_V_Pool |
Displays pool definitions |
Computations Using Pool Definitions
The bottom and top limit location levels have values that may be constant, vary periodically, or vary regularly. In addition, location levels may be redefined. Routines are provided that:
Return whether a specified elevation is in a specified pool
Return which pools a specified elevation is in
Return the bottom and/or top limit elevation or storage values
Return the offset of a specified elevation or storage from the bottom and/or top limit values
Return the percent full of a specified pool represented by a specified elevation or storage
Each of these can be computed for a specified elevation and/or storage value and a specified date/time. Except for the first two items – which are also restricted to elevations – computations are also supported for:
A specified table of values and a table of date/time rows
A table of (date/time, value, quality_code) rows
A time series identifier and a specified time window
PL/SQL procedures and function exist for all computations. Functions that return compound table types may be directed to return the results grouped by date/time or by type of information (e.g., bottom or top limit values).
Many routines have the same name but are overloaded (i.e., they have different parameters). See the CWMS Database API documentation for more detailed information.
Item Type |
Name |
Purpose |
|---|---|---|
Pro cedure |
Cwms_Pool.In_Pool |
Retrieves whether a specified elevation is in a specified pool at a specified time |
Fu nction |
Cwms_Pool.In_Pool_F |
Retrieves whether a specified elevation is in a specified pool at a specified time |
Pro cedure |
Cwms_Po ol.Cat_Containing_Pool_Names |
Catalogs pool names that contain a specified elevation at a specified time |
Fu nction |
Cwms_Pool .Cat_Containing_Pool_Names_F |
Catalogs pool names that contain a specified elevation at a specified time |
Pro cedure |
C wms_Pool.Get_Pool_Limit_Elev |
Retrieves the pool top or bottom limit elevation at a specified time |
Fu nction |
Cwm s_Pool.Get_Pool_Limit_Elev_F |
Retrieves the pool top or bottom limit elevation at a specified time |
Pro cedure |
Cw ms_Pool.Get_Pool_Limit_Elevs |
Retrieves the pool top and bottom limit elevation at a specified time |
Fu nction |
Cwms _Pool.Get_Pool_Limit_Elevs_F |
Retrieves the pool top and bottom limit elevation at a specified time |
Pro cedure |
Cw ms_Pool.Get_Pool_Limit_Elevs |
Retrieves the pool top or bottom limit elevations at multiple times |
Fu nction |
Cwms _Pool.Get_Pool_Limit_Elevs_F |
Retrieves the pool top or bottom limit elevations at multiple times |
Pro cedure |
Cw ms_Pool.Get_Pool_Limit_Elevs |
Retrieves the pool top and bottom limit elevations at multiple times |
Fu nction |
Cwms _Pool.Get_Pool_Limit_Elevs_F |
Retrieves the pool top and bottom limit elevations at multiple times |
Pro cedure |
Cw ms_Pool.Get_Pool_Limit_Elevs |
Retrieves the pool top or bottom limit elevations at times in a specified time series |
Fu nction |
Cwms _Pool.Get_Pool_Limit_Elevs_F |
Retrieves the pool top or bottom limit elevations at times in a specified time series |
Pro cedure |
Cw ms_Pool.Get_Pool_Limit_Elevs |
Retrieves the pool top and bottom limit elevations at times in a specified time series |
Fu nction |
Cwms _Pool.Get_Pool_Limit_Elevs_F |
Retrieves the pool top and bottom limit elevations at times in a specified time series |
Pro cedure |
Cw ms_Pool.Get_Pool_Limit_Elevs |
Retrieves the pool top or bottom limit elevations at times in a specified time series identifier and time window |
Fu nction |
Cwms _Pool.Get_Pool_Limit_Elevs_F |
Retrieves the pool top or bottom limit elevations at times in a specified time series identifier and time window |
Pro cedure |
Cw ms_Pool.Get_Pool_Limit_Elevs |
Retrieves the pool top and bottom limit elevations at times in a specified time series identifier and time window |
Fu nction |
Cwms _Pool.Get_Pool_Limit_Elevs_F |
Retrieves the pool top and bottom limit elevations at times in a specified time series identifier and time window |
Pro cedure |
C wms_Pool.Get_Pool_Limit_Stor |
Retrieves the pool top or bottom limit storage at a specified time |
Fu nction |
Cwm s_Pool.Get_Pool_Limit_Stor_F |
Retrieves the pool top or bottom limit storage at a specified time |
Pro cedure |
Cw ms_Pool.Get_Pool_Limit_Stors |
Retrieves the pool top and bottom limit storage at a specified time |
Fu nction |
Cwms _Pool.Get_Pool_Limit_Stors_F |
Retrieves the pool top and bottom limit storage at a specified time |
Pro cedure |
Cw ms_Pool.Get_Pool_Limit_Stors |
Retrieves the pool top or bottom limit storages at multiple times |
Fu nction |
Cwms _Pool.Get_Pool_Limit_Stors_F |
Retrieves the pool top or bottom limit storages at multiple times |
Pro cedure |
Cw ms_Pool.Get_Pool_Limit_Stors |
Retrieves the pool top and bottom limit storages at multiple times |
Fu nction |
Cwms _Pool.Get_Pool_Limit_Stors_F |
Retrieves the pool top and bottom limit storages at multiple times |
Pro cedure |
Cw ms_Pool.Get_Pool_Limit_Stors |
Retrieves the pool top or bottom limit storages at times in a specified time series |
Fu nction |
Cwms _Pool.Get_Pool_Limit_Stors_F |
Retrieves the pool top or bottom limit storages at times in a specified time series |
Pro cedure |
Cw ms_Pool.Get_Pool_Limit_Stors |
Retrieves the pool top and bottom limit storages at times in a specified time series |
Fu nction |
Cwms _Pool.Get_Pool_Limit_Stors_F |
Retrieves the pool top and bottom limit storages at times in a specified time series |
Pro cedure |
Cw ms_Pool.Get_Pool_Limit_Stors |
Retrieves the pool top or bottom limit storages at times in a specified time series identifier and time window |
Fu nction |
Cwms _Pool.Get_Pool_Limit_Stors_F |
Retrieves the pool top or bottom limit storages at times in a specified time series identifier and time window |
Pro cedure |
Cw ms_Pool.Get_Pool_Limit_Stors |
Retrieves the pool top and bottom limit storages at times in a specified time series identifier and time window |
Fu nction |
Cwms _Pool.Get_Pool_Limit_Stors_F |
Retrieves the pool top and bottom limit storages at times in a specified time series identifier and time window |
Pro cedure |
Cwms_Pool.Get_Elev_Offset |
Retrieves the offset of an elevation above the bottom or top limit elevation at a specified time |
Fu nction |
Cwms_Pool.Get_Elev_Offset_F |
Retrieves the offset of an elevation above the bottom or top limit elevation at a specified time |
Pro cedure |
Cwms_Pool.Get_Elev_Offsets |
Retrieves the offset of an elevation above the bottom and top limit elevations at a specified time |
Fu nction |
Cwms_Pool.Get_Elev_Offsets_F |
Retrieves the offset of an elevation above the bottom and top limit elevations at a specified time |
Pro cedure |
Cwms_Pool.Get_Elev_Offsets |
Retrieves the offsets of a table of elevations above the bottom or top limit elevations at multiple times |
Fu nction |
Cwms_Pool.Get_Elev_Offsets_F |
Retrieves the offsets of a table of elevations above the bottom or top limit elevations at multiple times |
Pro cedure |
Cwms_Pool.Get_Elev_Offsets |
Retrieves the offsets of a table of elevations above the bottom and top limit elevations at multiple times |
Fu nction |
Cwms_Pool.Get_Elev_Offsets_F |
Retrieves the offsets of a table of elevations above the bottom and top limit elevations at multiple times |
Pro cedure |
Cwms_Pool.Get_Elev_Offsets |
Retrieves the offsets of elevations in a specified time series above the bottom or top limit elevations |
Fu nction |
Cwms_Pool.Get_Elev_Offsets_F |
Retrieves the offsets of elevations in a specified time series above the bottom or top limit elevations |
Pro cedure |
Cwms_Pool.Get_Elev_Offsets |
Retrieves the offsets of elevations in a specified time series above the bottom and top limit elevations |
Fu nction |
Cwms_Pool.Get_Elev_Offsets_F |
Retrieves the offsets of elevations in a specified time series above the bottom and top limit elevations |
Pro cedure |
Cwms_Pool.Get_Elev_Offsets |
Retrieves the offsets of elevations in a specified time series identifier and time window above the bottom or top limit elevations |
Fu nction |
Cwms_Pool.Get_Elev_Offsets_F |
Retrieves the offsets of elevations in a specified time series identifier and time window above the bottom or top limit elevations |
Pro cedure |
Cwms_Pool.Get_Elev_Offsets |
Retrieves the offsets of elevations in a specified time series identifier and time window above the bottom and top limit elevations |
Fu nction |
Cwms_Pool.Get_Elev_Offsets_F |
Retrieves the offsets of elevations in a specified time series identifier and time window above the bottom and top limit elevations |
Pro cedure |
Cwms_Pool.Get_Stor_Offset |
Retrieves the offset of an storage above the bottom or top limit storage at a specified time |
Fu nction |
Cwms_Pool.Get_Stor_Offset_F |
Retrieves the offset of an storage above the bottom or top limit storage at a specified time |
Pro cedure |
Cwms_Pool.Get_Stor_Offsets |
Retrieves the offset of an storage above the bottom and top limit storages at a specified time |
Fu nction |
Cwms_Pool.Get_Stor_Offsets_F |
Retrieves the offset of an storage above the bottom and top limit storages at a specified time |
Pro cedure |
Cwms_Pool.Get_Stor_Offsets |
Retrieves the offsets of a table of storages above the bottom or top limit storages at multiple times |
Fu nction |
Cwms_Pool.Get_Stor_Offsets_F |
Retrieves the offsets of a table of storages above the bottom or top limit storages at multiple times |
Pro cedure |
Cwms_Pool.Get_Stor_Offsets |
Retrieves the offsets of a table of storages above the bottom and top limit storages at multiple times |
Fu nction |
Cwms_Pool.Get_Stor_Offsets_F |
Retrieves the offsets of a table of storages above the bottom and top limit storages at multiple times |
Pro cedure |
Cwms_Pool.Get_Stor_Offsets |
Retrieves the offsets of storages in a specified time series above the bottom or top limit storages |
Fu nction |
Cwms_Pool.Get_Stor_Offsets_F |
Retrieves the offsets of storages in a specified time series above the bottom or top limit storages |
Pro cedure |
Cwms_Pool.Get_Stor_Offsets |
Retrieves the offsets of storages in a specified time series above the bottom and top limit storages |
Fu nction |
Cwms_Pool.Get_Stor_Offsets_F |
Retrieves the offsets of storages in a specified time series above the bottom and top limit storages |
Pro cedure |
Cwms_Pool.Get_Stor_Offsets |
Retrieves the offsets of storages in a specified time series identifier and time window above the bottom or top limit storages |
Fu nction |
Cwms_Pool.Get_Stor_Offsets_F |
Retrieves the offsets of storages in a specified time series identifier and time window above the bottom or top limit storages |
Pro cedure |
Cwms_Pool.Get_Stor_Offsets |
Retrieves the offsets of storages in a specified time series identifier and time window above the bottom and top limit storages |
Fu nction |
Cwms_Pool.Get_Stor_Offsets_F |
Retrieves the offsets of storages in a specified time series identifier and time window above the bottom and top limit storages |
Pro cedure |
Cwms_Pool.Get_Percent_Full |
Retrieves the percent full computed from an elevation or storage value at single time |
Fu nction |
Cwms_Pool.Get_Percent_Full_F |
Retrieves the percent full computed from an elevation or storage value at single time |
Pro cedure |
Cwms_Pool.Get_Percent_Full |
Retrieves the percent full computed from a table of elevation or storage values at multiple times |
Fu nction |
Cwms_Pool.Get_Percent_Full_F |
Retrieves the percent full computed from a table of elevation or storage values at multiple times |
Pro cedure |
Cwms_Pool.Get_Percent_Full |
Retrieves the percent full computed from a elevation or storage values in a time series |
Fu nction |
Cwms_Pool.Get_Percent_Full_F |
Retrieves the percent full computed from a table of elevation or storage values in a time series |
Pro cedure |
Cwms_Pool.Get_Percent_Full |
Retrieves the percent full computed from a elevation or storage values in a time series identifier and time window |
Fu nction |
Cwms_Pool.Get_Percent_Full_F |
Retrieves the percent full computed from a elevation or storage values in a time series identifier and time window |
